FEATURES & APPLICATIONS

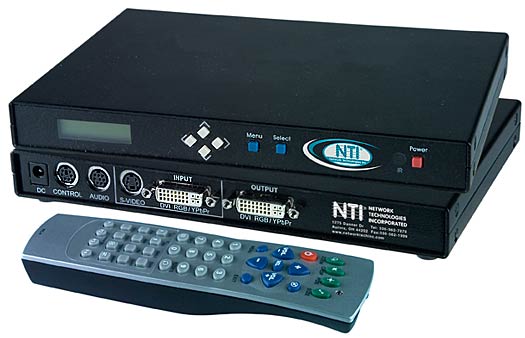

The SPLITMUX® Dual Screen Splitter allows you to simultaneously display and monitor video signals from two different computers or video sources on a single screen. Additionally, the SPLITMUX-SVDVI-2 works as a video wall processor, video scaler, PiP generator, and audio/video switch.

• Accepts digital and analog video inputs through a combination DVI/ RGBHV/ YPbPr connector and combination S-Video/Composite connector.
• Supports resolutions up to 1900x1200 and can de-interlace 1080i to 1080p.
• Dual, Picture in Picture and Full Screen display modes.
• Ability to rotate, stretch and crop multiple images.
• Ideal solution for many applications, including digital signage, trade shows, retail displays, videoconferencing and security applications.
• Connect multiple units to create a video wall as large as 32x32 screens.
• Control the unit through IR remote control, front panel interface or RS232 commands.
