PRODUCT ADDITIONAL INFORMATIONDisplay Modes
- Dual Mode
- In dual mode, the screen is split into two fields of equal size each displaying the entire contents of both video sources.
- Full Screen Mode
- In full screen mode, one of the video sources is displayed in full screen size and maximum resolution.
- Picture in Picture (PIP) Mode
- In PIP mode, the full screen display of one of the two video sources is accompanied by a small image (thumbnail) of the other video source allowing simultaneous monitoring.
- Translucent overlays maximize main image size while still seeing PiP
- Video Wall Mode
- Connect multiple units to create a video wall.
- A SPLITMUX-SVDVI-2 is required for each connected display within a video wall.
- Use SPLITMUX-LOOP-KIT to loop multiple units together for a single point of control.
- Depending on input and output resolutions, video walls up to 32x32 can be created.

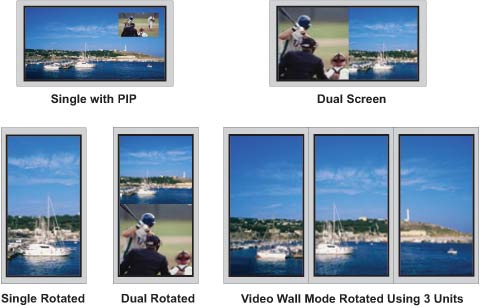

DIAGRAM
(Click here to zoom in on image)
|
