SM-8X16-C5AV-LCD
Video Matrix CAT5 router, 8 in 8 out, RGBHV VGA video + Stereo Audio

PRODUCT ADDITIONAL INFORMATION

Resolution over Distance Ratio

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable	Distance (feet)	Maximum Resolution
CAT5/ CAT5e	600	1024x768 at 60Hz
	400	1280x1024 at 60Hz
	300	1600x1200 at 60Hz
	100	1920x1440 at 60Hz
CAT6	300	1024x768 at 60Hz
	200	1280x1024 at 60Hz
	100	1920x1440 at 60Hz

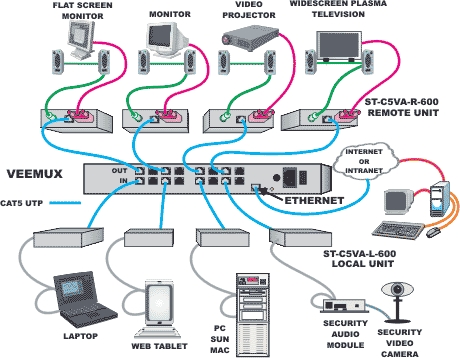

DIAGRAM

(Click here to zoom in on image)
