FEATURES & APPLICATIONS

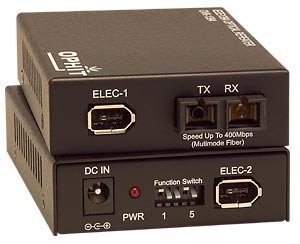

The XTENDEXâ„¢ Firewire Optical Extender extends a firewire device up to 1,000 meters (3,280 feet) using multimode fiber optic cable. The local and remote units connect using multimode fiber optic cable.

• Complies with 1394a and 1394b standards.
• Works with 1394b at speeds of 400, 200 and 100 Mbps, and with 1394a at speeds of 400, 200 and 100 Mbps.
• Extend a firewire device up to 500/1,000 meters (1,640/3,280 feet).
  • Using 50/125um cable, extend up to 1,000 meters (3,280 feet).
  • Using 62.5/125um cable, extend up to 500 meters (1,640 feet).
  • Full duplex data rate up to 400Mbps (Optical)
  • Supports Plug-n-Play specifications.
  • Pure hardware design, no software or drivers required.

The Firewire Optical Extender is the ideal solution for a wide range of applications. Examples include:

• A/V Broadcasting and Editing (printers, scanners, digital cameras/camcorders, digital audio recorders).
• Security (Surveillance cameras, webcams, mass storage).
• Long range IEEE FireWire networking.
