ST-C5USBV-300

USB KVM extender via CAT5 to 300 feet

FEATURES & APPLICATIONS

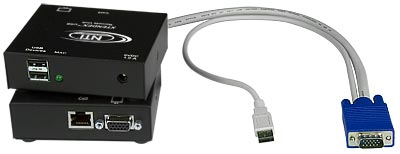

The XTENDEX® ST-C5USBV-300 USB KVM extender extends a USB keyboard/mouse and VGA display up to 300 feet via CAT5/5e/6 cable. Each ST-C5USBV-300 consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/5e/6 cable.
  • Supports local and remote access.
  • Compatible with all video resolutions up to WUXGA (dependant upon CAT5/5e/6 extension length).
  • Maximum 1024x768 video resolution at 300 feet; higher resolutions are supported at shorter distances up to 1920x1440 (see resolution chart below).
  • Keyboard and mouse are hot-pluggable.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Built-in surge protection.
  • Available with optional stereo audio.
  • Allows users to back-rack broadcast quality servers without impact to post-production operations.
