IPDU-ENV-15A-515-8

Intelligent Power Distribution Units, 120V 15A, 8 x NEMA 5-15

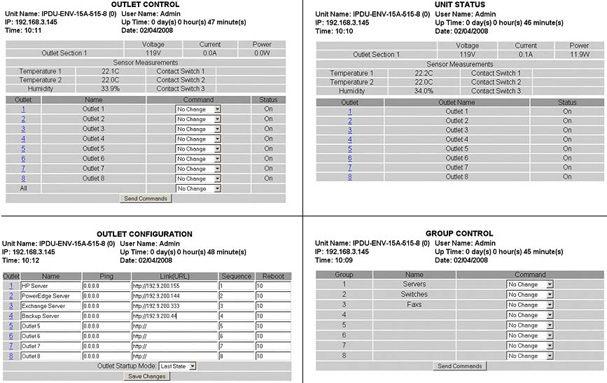

PRODUCT ADDITIONAL INFORMATION

PRODUCT ADDITIONAL I

(Click here to zoom in on image)




SENSOR OPTIONS
Temperature (IPDU-ENV-T-10 and IPDU-ENV-2T-10)
  • For use with IPDU-ENV-15A-515-8 or IPDU-ENV-20A-515-8.
  • Applications from 5°F to 150°F (-15ºC to 65ºC).
  • Accurate to within ±2°F (±1.11ºC).
  • Length: 10 feet.
  • Use IPDU-ENV-T-10 as the primary temperature sensor.
  • Use IPDU-ENV-2T-10 as a second temperature sensor; includes an RJ45 "Y" adapter.
    • Can be simultaneously used with the main temperature sensor (IPDU-ENV-T-10) or the temperature/humidity combination sensor (IPDU-ENV-THS-10).
Temperature/Humidity Combination Sensor (IPDU-ENV-THS-10)
  • For use with IPDU-ENV-15A-515-8 or IPDU-ENV-20A-515-8.
  • Temperature applications from 5°F to 150°F (-15ºC to 65ºC).
    • Accurate to within ±2°F (±1.11ºC).
  • Relative humidity applications from 0% to 100%, non-condensing.
    • 0% to 60% relative humidity, ±7%
    • 60% to 100% relative humidity, ±10%
  • Length: 10 feet.

(Click here to zoom in on image)
