UNIMUX-DVI-4
Control 4 DVI-enabled USB computers w/ 1 USB kbd & mse and 1 DVI-D monitor, rackmount kit

PRODUCT ADDITIONAL INFORMATION

RS232 Control Method (Optional)
Control

RJ45 connector.
Baud rate 2400, 9600, 19200, or 38400.
Use DIP switches to address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
Download RS232 protocol manualÂ

Commands

RS - causes switch to reset so that IN1 connects to OUT1.
CS - causes one INx/OUTx connection to occur.
RO - reads what input is connected to specified output.
RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.

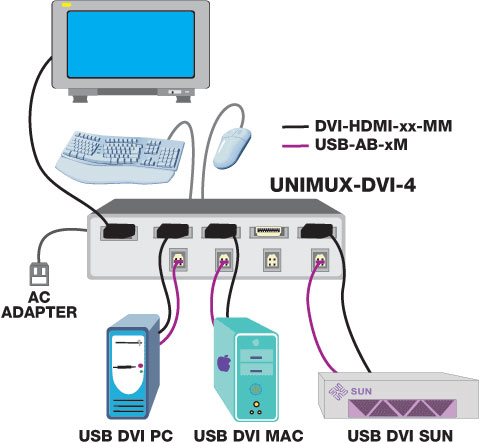

DIAGRAM

(Click here to zoom in on image)
