PRODUCT ADDITIONAL INFORMATIONCables
- NTI High Density cables between user devices and the XTENDEX Multiple KVM Extenders are required for proper operation.
- NTI High Density cables between the CPUs and the XTENDEX Multiple KVM Extenders are required for proper operation.
- Cables not included.
Options
- Stereo Audio
- Stereo audio can be heard both locally and remotely.
- Frequency response: 20 Hz to 20 kHz, +/-1 dB.
- Signal-to-Noise Ratio (SNR): 76 dBA.
- Total Harmonic Distortion and Noise (THD+N): 0.017%.
- Stereo crosstalk: -70 dB
- Input impedance: 10k Ohms.
- Line level output; supports multimedia speakers.
- Maximum I/O levels: 3.1 Vp-p (line level).
- RS232
- Supports TXD, RXD, DTR, DSR, CTS, and RTS.
- Baud rate up to 56,000.
- Support for a touch screen monitor.

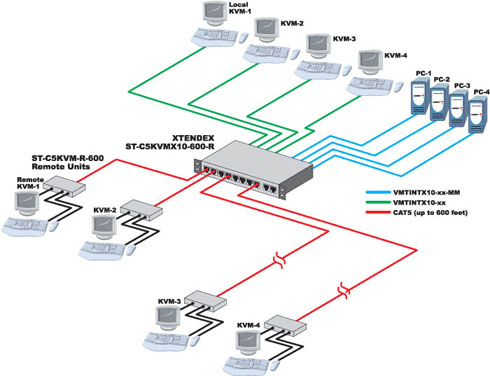

DIAGRAM
(Click here to zoom in on image)
|
