PRODUCT ADDITIONAL INFORMATIONOptional features available:
- Stereo Audio
- Stereo audio can be heard both locally and remotely.
- Frequency response: 20 Hz to 20 kHz, +/-1 dB.
- Signal-to-Noise Ratio (SNR): 76 dBA.
- Total Harmonic Distortion and Noise (THD+N): 0.017%.
- Stereo crosstalk: -70 dB.
- Input impedance: 10k Ohms.
- Line level output; supports multimedia speakers.
- Maximum I/O levels: 3.1Vp-p (line level).
- CD quality audio output.
- RS232 Control
- Supports TXD, RXD, DTR, DSR, CTS and RTS.
- Baud rate up to 56000.
- Support for a touch screen monitor.
- VESA Mounting Bracket
- Use to mount the remote unit to the back of a flat panel monitor.
- Compliant to VESA 75mm and 100mm mounting hole patterns.
- Dimensions WxH (in): 9.7x4.8
- Compatible with the remote unit only.

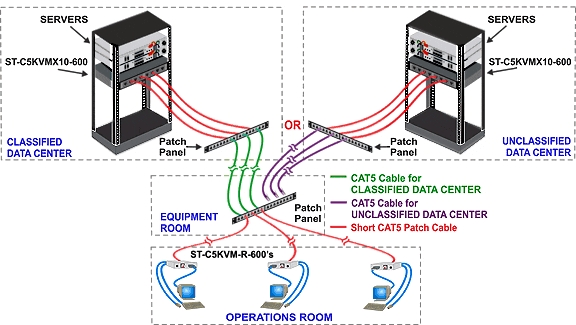

(Click here to zoom in on image)PRODUCT ADDITIONAL II

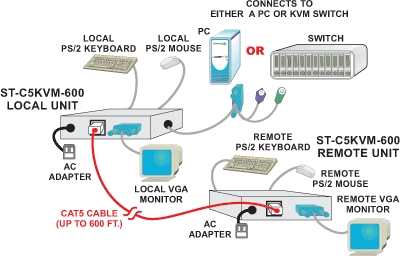

(Click here to zoom in on image)DIAGRAM
(Click here to zoom in on image)
|
